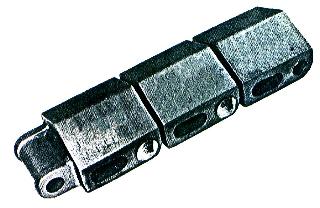

Transfer Chain

Transfer Chain

RICH KING CHAIN NO.	STYLE OF TOP	DIMENSIONS IN INCHES
		PITCH	MAXIMUM ALLOWABLE SPROCKET FACE	DIAMETER OF END BAR	DEPTH OF RIB (STYLE "B" RIBBED HOOK ONLY)	BACKING	OVER-ALL WIDTH	BEARING LENGTH	AVERAGE ULIMATE STRENGTH IN LBS.
		PITCH	A	D	F	H	L	X	AVERAGE ULIMATE STRENGTH IN LBS.
H78A	A	2.609	13/16	5/16		13/32	1-21/32	31/32	4000
H78B	B	2.609	11/16	5/16	17/32	13/32	2-1/32	1-23/64	4250
H130	A	4.000	11/16	25/64	39/64	23/64	2-7/32	1-27/64	4500
H131	A	4.000	15/16	27/64	21/32	7/16	2-5/8	1-5/8	6880
H138	B	4.000	15/16	31/64	25/32	7/16	2-3/4	1-25/32	8000

RICH KING CHAIN NO.	STYLE OF TOP	DIMENSIONS IN INCHES
		PITCH	OVER ALL WIDTH OF DETACH-ABLE PIN	DIAM. OF PIN	MAX. ALLOW-ABLE SPKT. FACE	HEIGHT OF SIDE BAR	CENTER OF PIN TO TOP	OVER ALL HEIGHT	WIDTH OF TOP
		PITCH	A	D_P	E	F	J	P	W
500	C	4.000	3	5/8	3/64	3/64	3/64	11/16	3
