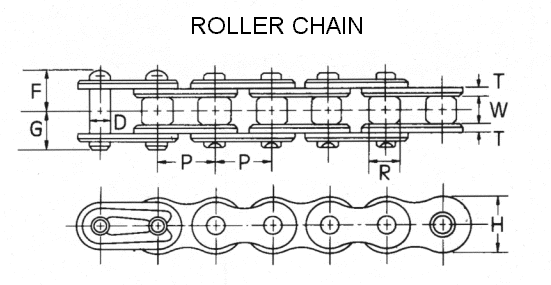

RICH
KING
CHAIN NO. |
P x W
mm
|
ROLLER
DIAM.
R(MAX) |
PLATE
|
DIAM. |
PIN
|
AVERAGE
ULTIMATE
STRENGTH
LBS. |
WEIGHT
KG/M |
| HEIGHT |
THICKNESS |
LENGTHS |
| H |
T |
D |
F |
G |
| 25 |
6.35
x 3.18 |
0.130 |
0.228 |
0.030 |
0.0905 |
0.150 |
0.189 |
880 |
0.14 |
| 35 |
9.525 x 4.80 |
0.2 |
0.346 |
0.05 |
0.141 |
0.228 |
0.276 |
2029 |
0.33 |
| 41 |
12.70 x 6.40 |
0.306 |
0.386 |
0.05 |
0.143 |
0.260 |
0.307 |
2420 |
0.41 |
| 40 |
12.70 x 7.95 |
0.3152 |
0.466 |
0.060 |
0.156 |
0.319 |
0.358 |
3960 |
0.63 |
| 50 |
15.875 x 9.53 |
0.400 |
0.581 |
0.080 |
0.200 |
0.394 |
0.453 |
6600 |
1.01 |
| 50H |
15.875 x 9.53 |
0.400 |
0.590 |
0.094 |
0.200 |
0.433 |
0.492 |
7480 |
1.12 |
| 60 |
19.05 x 12.70 |
0.469 |
0.670 |
0.094 |
0.234 |
0.492 |
0.547 |
8800 |
1.44 |
| 60CP |
19.05 x 12.70 |
0.469 |
0.680 |
0.094 |
0.234 |
0.492 |
0.598 |
9240 |
1.44 |
| 60H |
19.05 x 12.70 |
0.469 |
0.670 |
0.125 |
0.234 |
0.551 |
0.614 |
10340 |
1.81 |
| 80 |
25.4 x 15.88 |
0.625 |
0.915 |
0.125 |
0.312 |
0.634 |
0.724 |
14300 |
2.40 |
| 80CP |
25.4 x 15.88 |
0.625 |
0.915 |
0.125 |
0.312 |
0.634 |
0.724 |
14300 |
2.40 |
| BICYCLE
CHAIN |
RICH
KING
CHAIN NO. |
P
x W
mm |
ROLLER
DIAM.
R(MAX) |
PLATE |
|
PIN |
AVERAGE
ULTIMATE
STRENGTH
LBS. |
WEIGHT
KG/M |
| HEIGHT |
THICKNESS |
DIAM. |
LENGTHS |
| H |
T |
D |
F |
G |
| 408 |
12.7
x 2.40 |
0.306 |
0.371 |
0.039 |
0.143 |
0.157 |
0.157 |
2090 |
0.28 |
| 410 |
12.7 x 3.45 |
0.306 |
0.383 |
0.039 |
0.143 |
0.181 |
0.228 |
2090 |
0.30 |
| 415 |
12.7 x 4.88 |
0.306 |
0.383 |
0.043 |
0.143 |
0.266 |
0.218 |
2200 |
0.33 |
|
