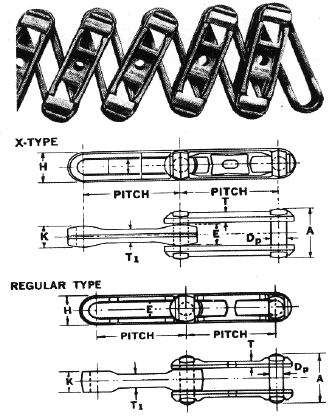

RIVETLESS DROP FORGED CHAIN
| |
DIMENSIONS IN INCHES |
| RICH
KING CHAIN NO. |
PITCH |
A |
Dp |
E |
H |
K |
T |
T1 |
AVERAGE
ULTIMATE STRENGTH IN LBS. |
| X348 |
3.031 |
1-3/4 |
1/2 |
9/16 |
1-1/16 |
3/4 |
13/32 |
33/64 |
37000 |
| X458 |
4.031 |
2-3/16 |
5/8 |
11/16 |
1-7/16 |
1-1/64 |
31/64 |
21/32 |
48000 |
| X678 |
6.031 |
3-1/32 |
7/8 |
1 |
2 |
1-5/16 |
23/32 |
27/32 |
85000 |
| 698 |
6.031 |
3-3/4 |
1-1/8 |
1-1/4 |
2-11/16 |
1-9/16 |
19/32 |
1-1/32 |
136000 |
|
